Machinery Capacities

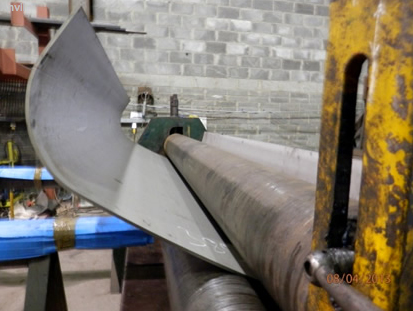

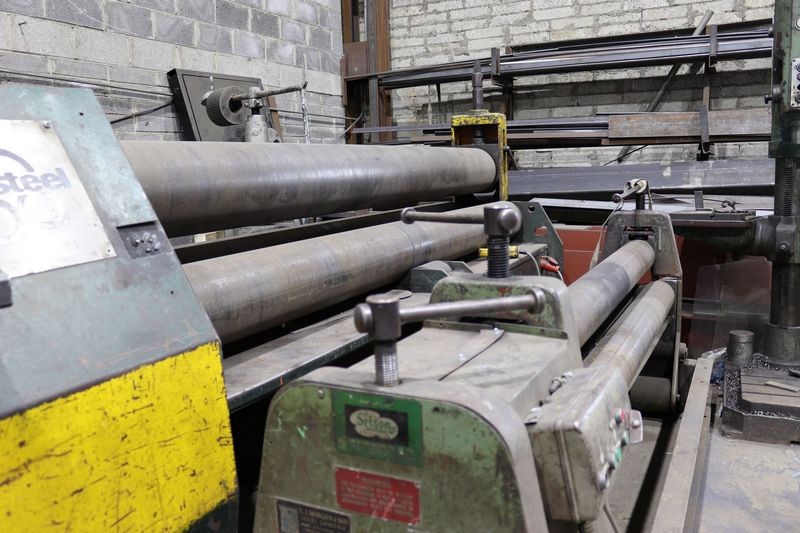

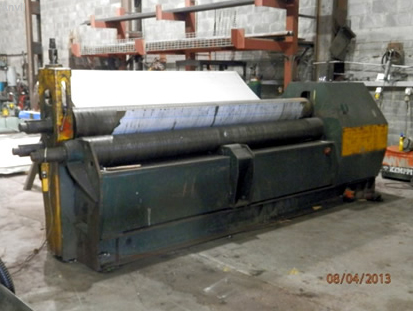

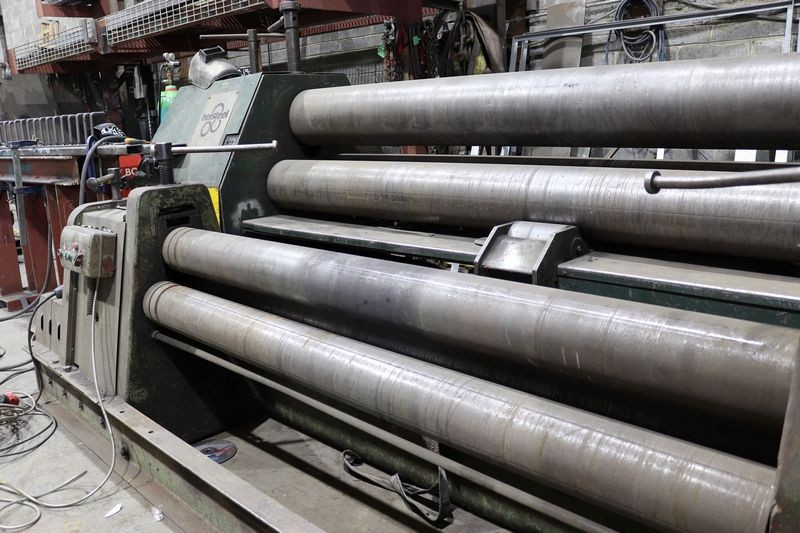

Plate Rolls



  • 1200mm x 3mm
  • 2000mm x 6mm
  • 3000mm x 12mm

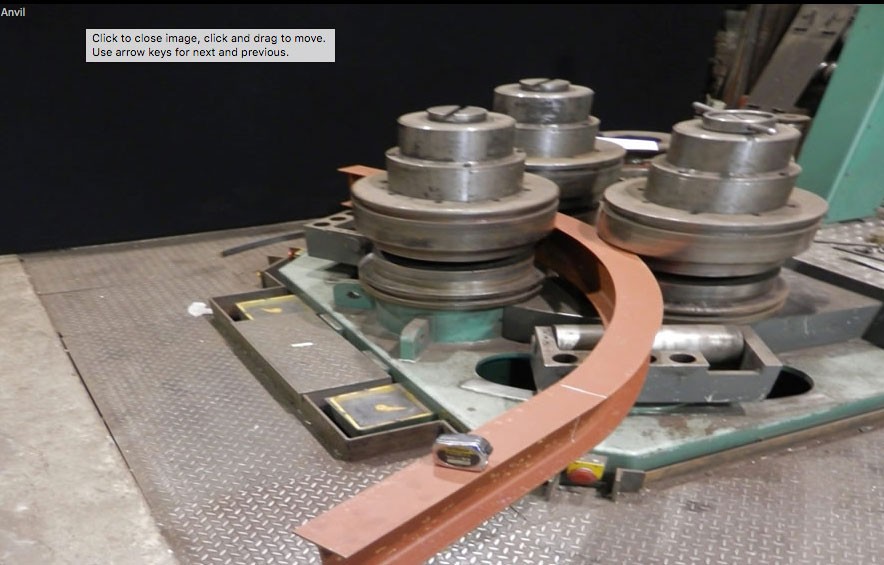

Section Rolls

  • Roundo – RS7
  • Roundo – RS4
Section Type With standard Rolls With special Rolls
Max. 160 x 160 x 20mm
Min. 20 x 20 x 3mm to 290 Dia.
Radius 900mm
Max.150 x 150 x 20mm to 1600 Dia.
Min. 20 x 20 x 3mm to 350 Dia.
Radius 900mm
Small sections only
Large curves
Max. Section
150 x 150 x 8mm
Tee sections Toe in or Toe out
Max. size 150 x 150 x 20mm
Min. size
20 x 20 x 3mm to 300 Dia.
Max. 203 UC 46 kg
IPE 200
152 UC 37kg
Min. IPE 60
Radius 17 metre
Radius 3 metres
Radius 2.5 metres
Radius 500mm

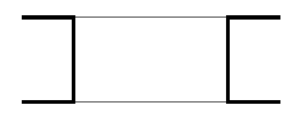

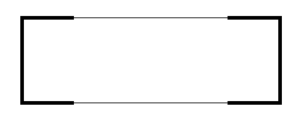

Max. PFC 360
Min. 40x20
Radius 750mm
Radius 140mm
Max. PFC 360
Min. 40x20
Radius 600mm
Radius 140mm
Max. 203UC 52kg
356 x 165 x 46 UB
Radius 2500mm
Radius 1000mm

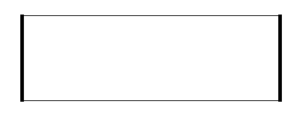

Flat Bars on Edge or on the Flat
Max. 200 x 30mm on Edge no min.
Max. 350 x 50mm on flat
No minimum sizes

Radius 750mm
Radius 500mm
Radius 130mm
Max. PFC 200
Min. 40x20mm
Radius 6000mm
Radius 900mm
Max. 100 x 100
Min. no limit
Radius 800mm
Radius 130mm

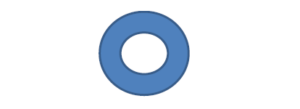

Max. 6 inch NB
Min. 0.5 inch NB
Radius 1750mm
Radius 180mm coiled

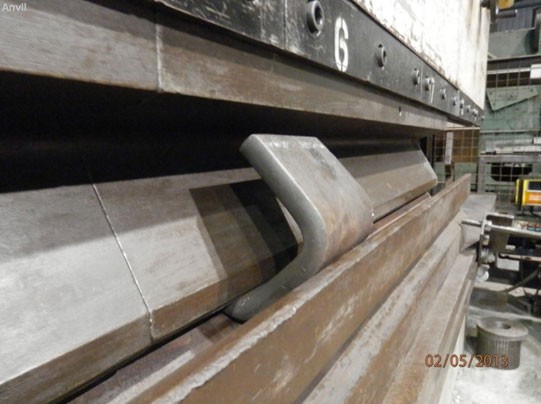

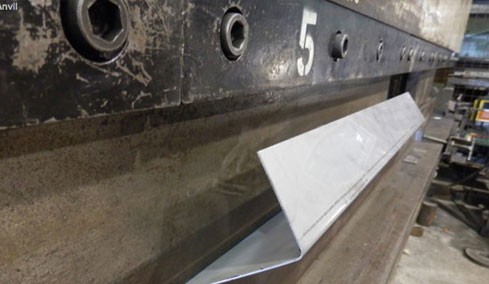

Press Brake

  • Bronx – 250 ton capacity, 8mm x 4 metre
  • 1200mm box and pan folder
Pressbrake Airbending Tonnage Guide
Tonnes Per Metre 40kg/mm2 Tensile Strength
Vee Width in mm 8 12 16 20 35 40 50 60 90 150 190
Radius in mm 1.2 2 2.5 3 5 6.25 8 10 12.5 23.5 40

Thickness in mm
1 7.6
1.2 12.2 7.2
1.5   11.4 9.1
2   20.3 15.2 12.2
2.5     25.3 19
3       30.4 18
4         30.5 24.3
5         50.7 38 30.4
6           60.08 45.6 36
8   4 metre length max     81 64 40
10   3 metre length max         70
12   2.5 metre length max         100
15                   91.2
20                   165
25                     170

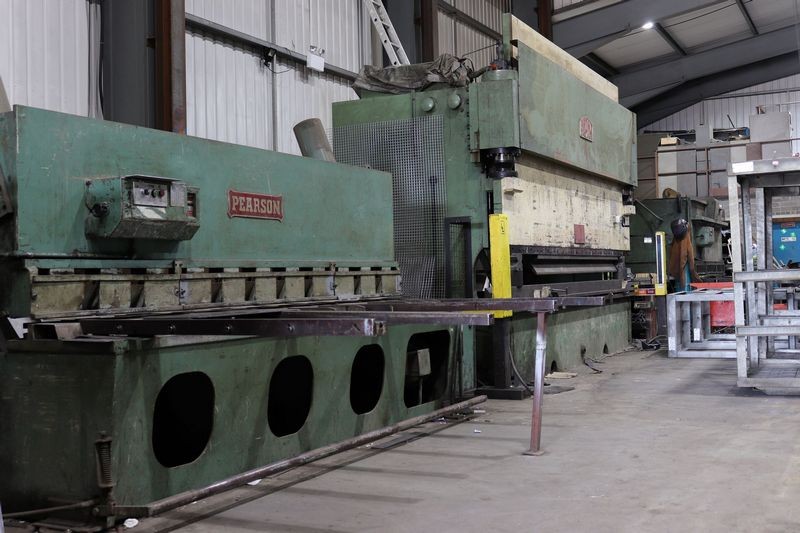

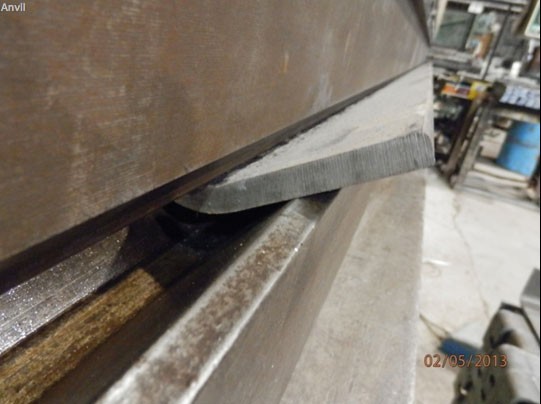

Guillotines

  • 2500m x 20mm
  • 3000mm x 10mm

Tube Bender

  • Pedrozolli Brown
    80mm Max Section

Drills

  • Richmond Radial Drill 850mm Throat

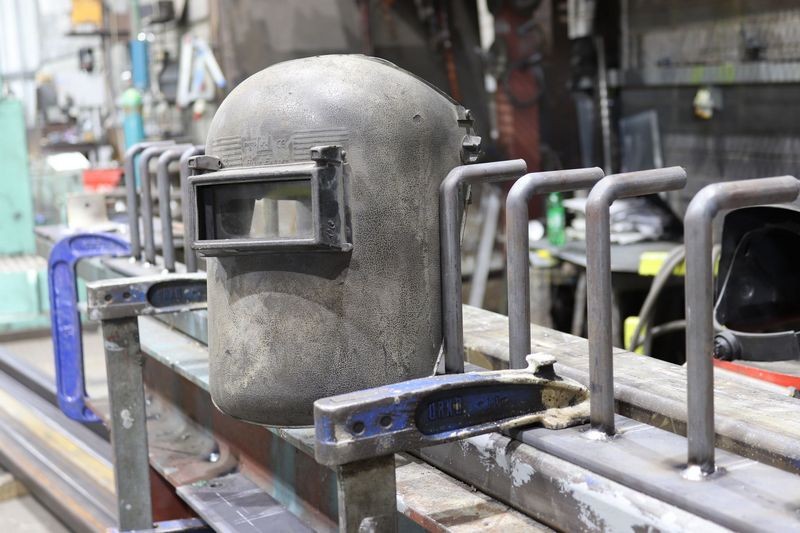

Welding

  • Mig
  • Tig
  • Stick
